13000w Universal Renewable Energy Controller for Off-Grid Wind Solar Hybrid Systems Hybrid Charge Controller, Solar Controller, Mppt Solar Charge Controller 12V-13000W

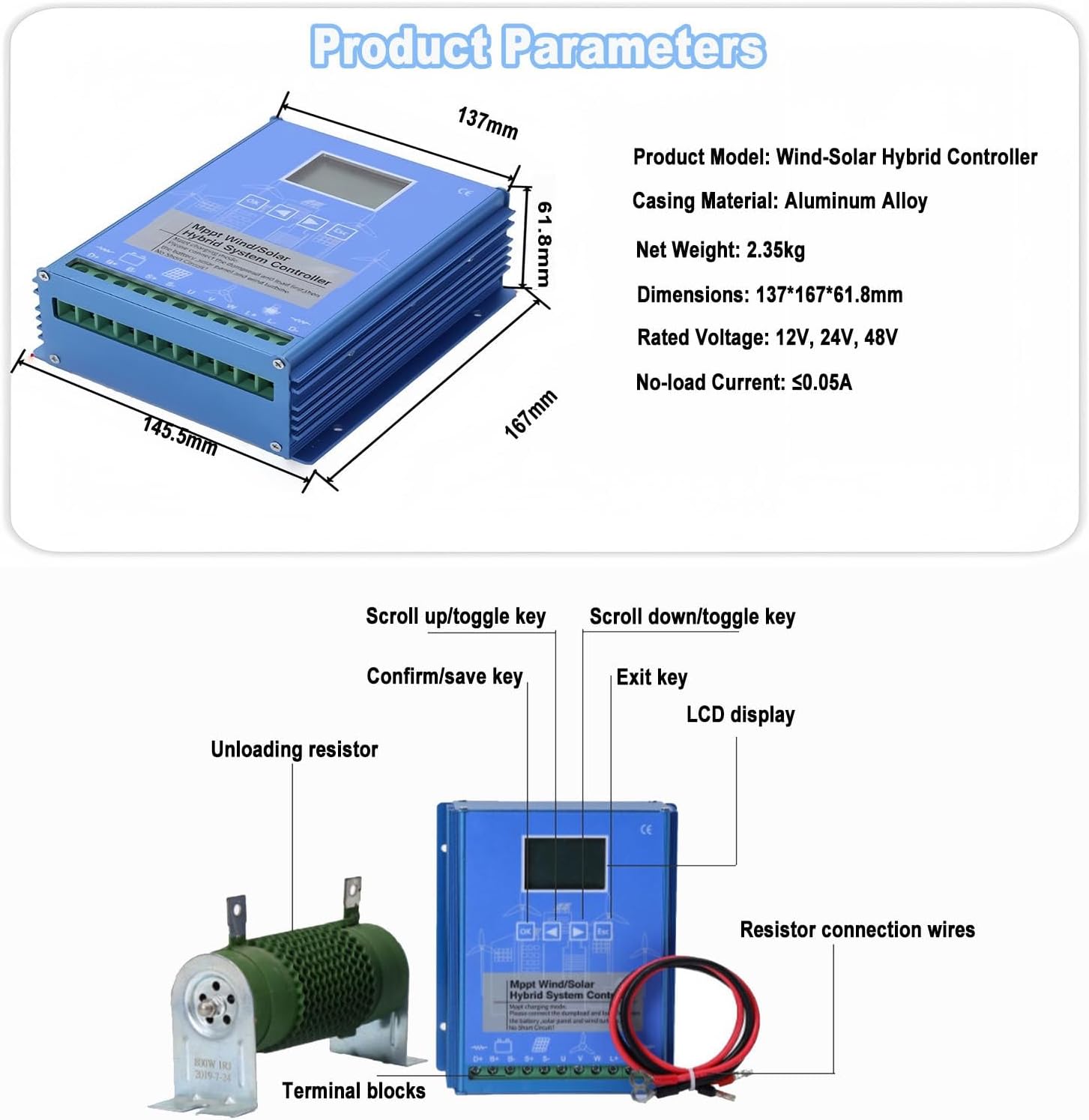

✅ Is your wind-solar hybrid system limited by the limited functionality and complex operations of traditional controllers? Our MPPT wind-solar hybrid street light controller redefines small off-grid power supply with its intelligent design—more efficient, more flexible, and more intuitive!◆Why choose our wind-solar hybrid controller? This wind-solar hybrid street light controller is designed specifically for small off-grid installations. Wind turbines and solar panels can safely and efficiently charge batteries. Wind turbine MPPT boost charging function The LCD display provides comprehensive information, a clear interface, and a push-button interface for simple setup. The LCD displays wind, solar, and load parameters, including voltage and current. Some parameters can be configured by the user. Dual power supply: battery + solar power Multiple operatings modes: pure solar control, always-on, solar control + timer control (four time periods + morning light)◆Specifications Model: Wind-solar hybrid controller Material: Aluminum alloy Rated voltage: 12V/24V/48V Display parameters: voltage, current, power, temperature, charging mode, etc. Dimensions: 167*145.5*61.8mm/6.57*5.72*2.43in (compact and easy to install) Net weight: 2.35kg No-load current: <0.05A Operating temperature: -25°C to +55°C◆Packing List1 controller1 self-loading resistor2 resistor cables◆Note1. Correct connection sequence:1) Please connect the wires between the battery and the controller.2) Please connect the wires between the wind/solar panel and the controller.2. Compatible Batteries:This model is compatible with GEL, lead-acid, and lithium batteries.✉ If you have any questions, please email us and we will respond within 24 hours.

• ✅【Boost MPPT Technology】: The MPPT charge controller's charging section uses Boost MPPT technology, allowing continuous and efficient charging even at low wind speeds. It features a continuous discharge function including an external discharge resistor. The solar modules are charged using PWM technology through series-connected MOS tubes.
• ✅【Multiple Protection】: This hybrid charge controller features solar reverse polarity protection, overcharge, undervoltage, and overload protection, battery reverse polarity and open-circuit protection, lightnings protection, and more.
• ✅【Intelligent and Stable】: The MPPT solar charge controller adjusts the parameters perfectly after selecting the battery type. Users can also customize it to their needs. The system has been designed more intelligently, and the charging voltage regulation is absolutely stable.
• ✅【3 Output Modes】: The controller is equipped with an LCD screen for easy navigation and operation. The DC load output has 3 output modes, and each mode can be set differently.
• ✅【Application】: The wind and solar hybrid charge controller is compatible with all 12V/24V/48V batteries. It is suitable for lithium, lead-acid, gel, and other battery types. It is used for wind turbines and solar modules. It can be used in houses, boats, and streetlights. Wind and solar complementary systems include hybrid boost charge controllers, solar-wind charge controllers, and wind turbine solar chargers.
